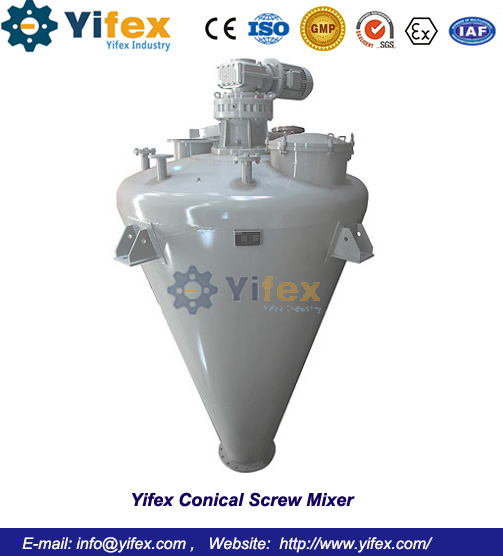

Yifex Conical Screw Mixer
Model	DSH
Material	Stainless Steel 304 or 316，or Carbon Steel
Voltage	3 phase, 220V/ 380V/ 415V, 50HZ/60HZ(Customized is available)
Minimum Order Quantity	1 set
Warranty	12 months
Certification	CE,ISO,FDA,GMP
Delivery Time	10-30 days after receiving deposit
Payment Terms	T/T, L/C, Western Union, Paypal

If you choose this product, please tell us the Model and  your country. We will help you to calculate the machine price and shipping cost , Our Email is: info@yifex.com

For more details, please get in touch with us right now!

Introduction:

This is worldwide acknowledged as the industrial standard conical shape mixer and it is used on a wide variety of applications in the industry such as pharmaceutical, food, battery materials, dyestuff & pigment, chemical industry, fertilizer, rare earth, titanium powder etc. It is widely used to mix powder-powder, power-liquid, especially for fine powder, fiber or chip-shaped materials.

Working Principle:

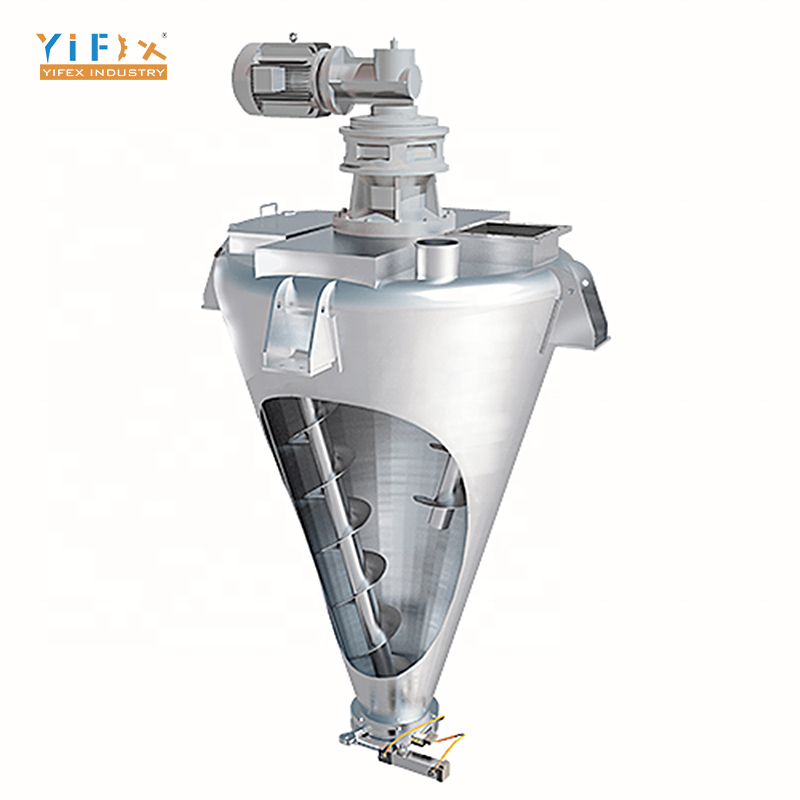

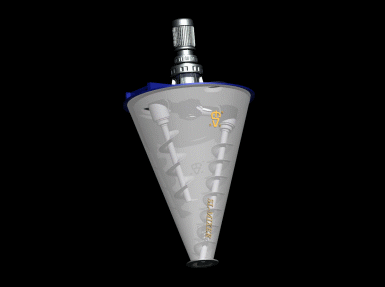

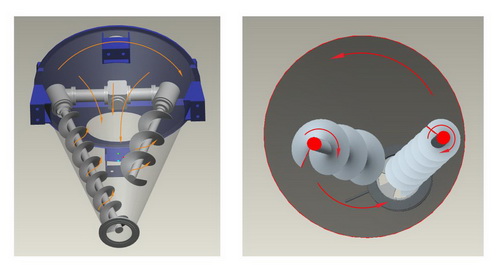

Conical mixer is made based on the principle of rotation and revolution, conveying the material along with the axle by means of rotation. Simultaneously, the material is upward and downward cycled by gyratory stirring along wall surface of cone, with the central revolution. The even mixing can be performed in the shortest time.

Standard Features:

Volume: 100-30000L

Stainless Steel or Carbon Steel

Screw agitator for center discharge

Designed for normal temperature and normal atmospheric pressure

Feed Nozzle

Dust Nozzle

Manually operated or Pneumatic operated dislocated valve

Packing Seal

Safety limit switch on man hole

Optional Features:

Carbon Steel, Stainless Steel 304, Stainless Steel 316L

Internal pressure

Sanitary type construction

Dislocated valve, butterfly valve, slide gate valve, ball valve

Horsepower to suit higher density materials

Explosion-proof motors

Controls such as variable frequency drives, motor starters and operator stations are available

Spray nozzles for liquid introduction

Jacket for heating or cooling

Technical Data:

Model	Total Volume	Effective Volume	Power
DSH-0.1	100L	40-60L	1.5KW
DSH-0.3	300L	120-180L	2.2KW
DSH-0.5	500L	200L-300L	3KW
DSH-1	1000L	400L-600L	4KW
DSH-1.5	1500L	600L-900L	5.5KW
DSH-2	2000L	800L-1200L	5.5KW
DSH-3	3000L	1200L-1800L	7.5KW
DSH-4	4000L	1600L-2400L	11KW
DSH-5	5000L	2000L-3000L	15KW
DSH-6	6000L	2400L-3600L	15KW
DSH-8	8000L	3200L-4800L	18.5KW
DSH-10	10000L	4000L-6000L	22KW
Two Motors
DSH-10	10000L	4000L-6000L	22KW; 4KW
DSH-12	12000L	4800L-7200L	30KW; 4KW
DSH-15	15000L	6000L-9000L	22KW; 4KW
DSH-20	20000L	8000L-12000L	37KW; 5.5KW
DSH-25	25000L	10000L-15000L	37KW; 5.5KW
DSH-30	30000L	12000L-18000L	45KW; 7.5KW

Certification:

CE,ISO,FDA,GMP
