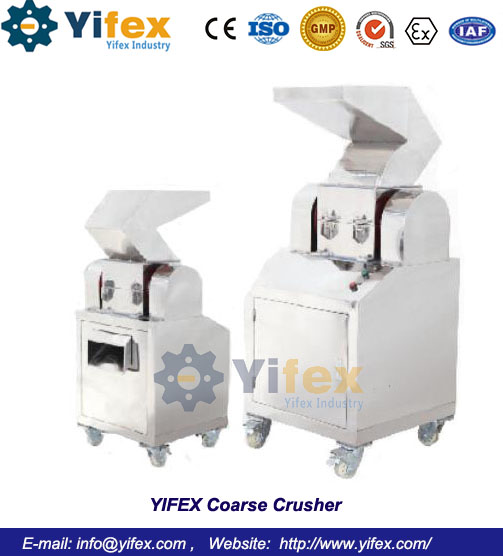

YIFEX Coarse Crusher |
|
|
Model Series |
YB |
|
Material |
Stainless Steel 304 or 316 |
|
Voltage |
3 phase, 220V/ 380V/ 415V, 50HZ/60HZ(Customized is available) |
|
Minimum Order Quantity |
1 set |
|
Warranty |
12 months |
|
Certification |
CE,ISO,FDA,GMP |
|
Delivery Time |
10-30 days after receiving deposit |
|
Payment Terms |
T/T, L/C, Western Union, Paypal |
|
If you choose this product, please tell us the Model and your country. We will help you to calculate the machine price and shipping cost , Our Email is: info@yifex.com |
For more details, please get in touch with us right now!
Main Usage:
YIFEX Coarse Crusher is applied as supporting equipment, before fine curshing process in such trade as pharmaceutical, chemical and foodstuff etc. which has better curshing effect for any material without limitation on its viscosity, hardness, softness and fiber etc.
Working Method:

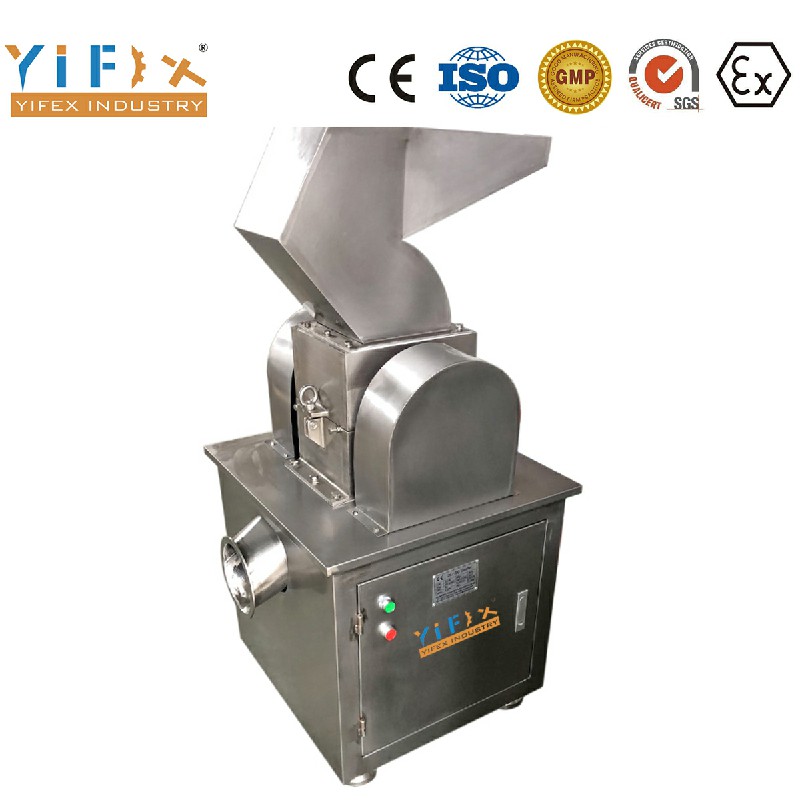

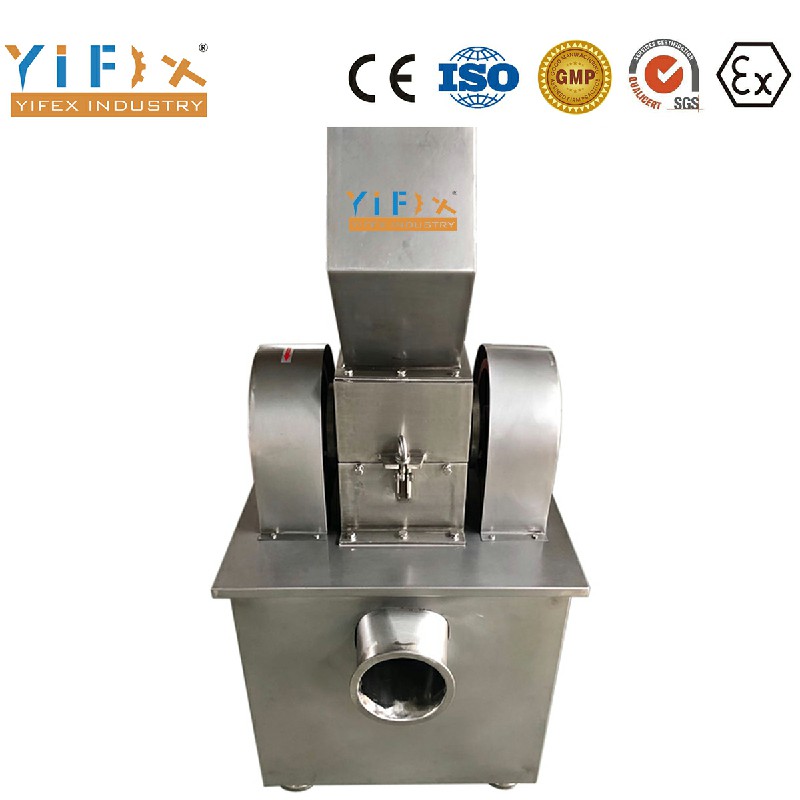

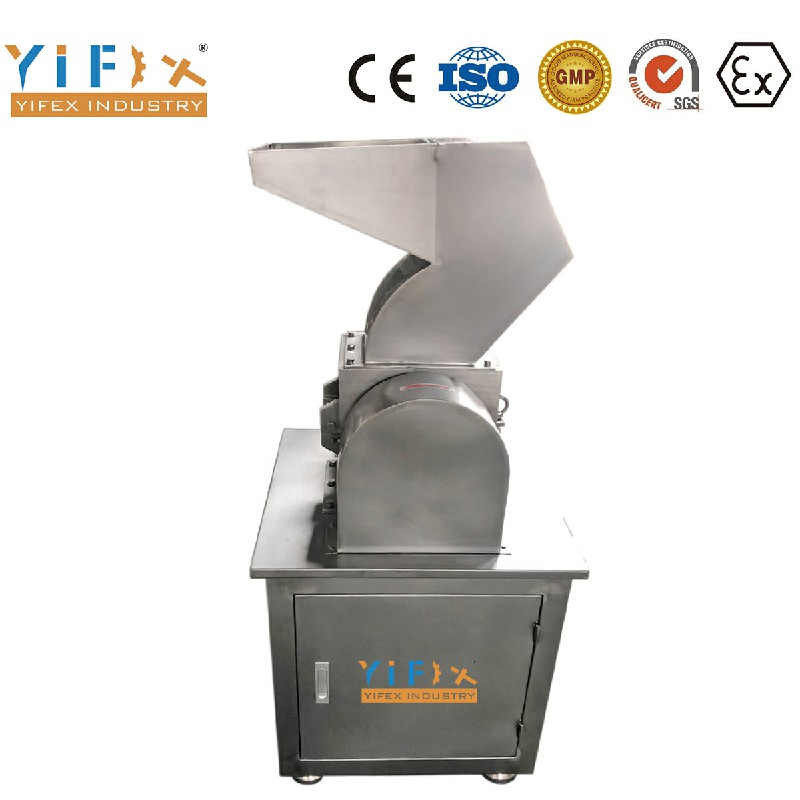

YIFEX Coarse Crusher of honzontal crushing structure, and the material is fed into the crushing chamber through a hopper, crushed by cutting andd impact of both fixed and rotating knives, and flows to the exit automatically under the effect of rotating centrifugal force. Designed according to GMP standard and wholly made of stainless steel, this machine has simple structure, convenient cleaning and lower noise, being the ideal equipment for coarse curshing.
Certification:
CE,ISO,FDA,GMP
Technical Data:
| Model | YB-200 | YB-300 | YB-400 | YB-600 |
| Capacity(kg/h) | 80-300 | 100-800 | 200-1000 | 500-1500 |
| Size of input granules(mm) | ≤100 | ≤100 | ≤100 | ≤100 |
| Crushing fineness(mm) | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
| Speed of principal axis(RPM) | 960 | 960 | 960 | 960 |
| Motor power(KW) | 3 | 4 | 5.5 | 11 |
| Overall Size(L x W x H)(mm) | 900x600x1440 | 900x700x1440 | 900x800x1440 | 1000x900x1440 |
| Weight(kg) | 200 | 300 | 380 | 500 |
As different country ,the shipping cost is not same, so,after you chosen the products,
please tell us the model,quantity and your country .
We will help you calculate the machine price and shipping cost ,Our Email: info@yifex.com
About US:
1.We are Chinese professional screening machines supplier with 20 years of production experience. products such as: crusher and mill, vibraing screen, filter, packing machine, feeders, conveyors and mixer machine etc.
2.All of our products can be SS304, SS316 and carbon steel, or nonmetal, pls let us know your request.
3.Customised designs and sizes available
4.Comply with Europe and America standard
5.OEM, ODM and OBM orders available.
Products details:
1) Various designs and colors are available
2) Good quality and competitives prices
3) Packing: 1set/ wooden case or according to customer designs
4) Production Time: 7-30days
Price terms:
We can offer EXW price, FOB price, CIF price as client's requests.
Payment terms:
1.T/T 30% deposit before production and balance before delivery or against by B/L if sea shipment
2.L/C at sight if sea shipment.
Shipping way:
1.By air or sea through your pointed forwarder is OK for us. FOB Port is Shanghai.
2.If you don't have your forwarder,we can find the cheapest forwarder to ship the goods to your pointed port.
3.We can provide the customs documentations of the shipment as you required to you.
|
