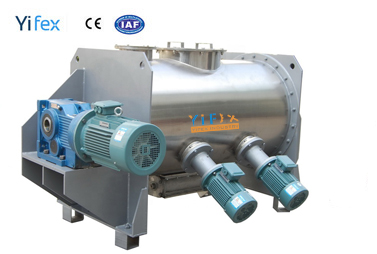

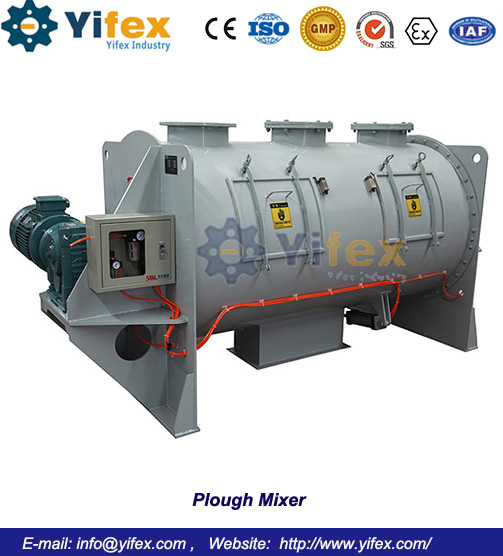

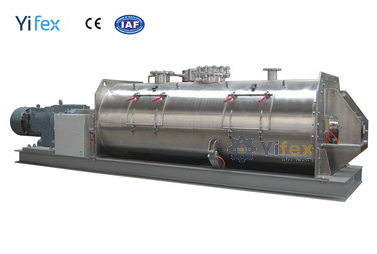

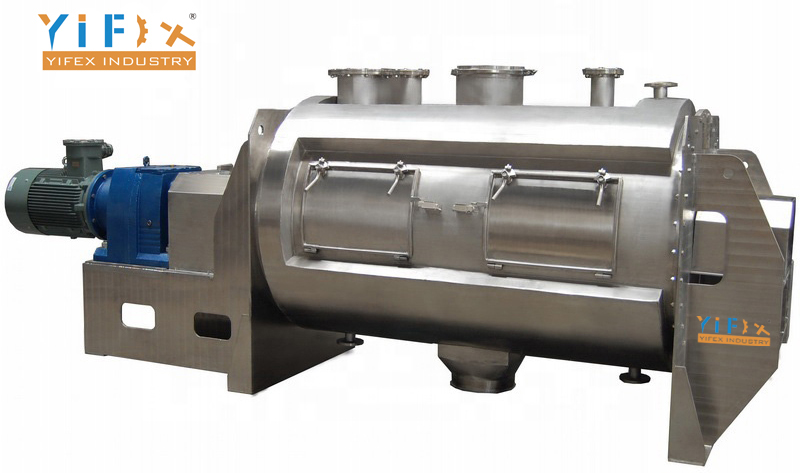

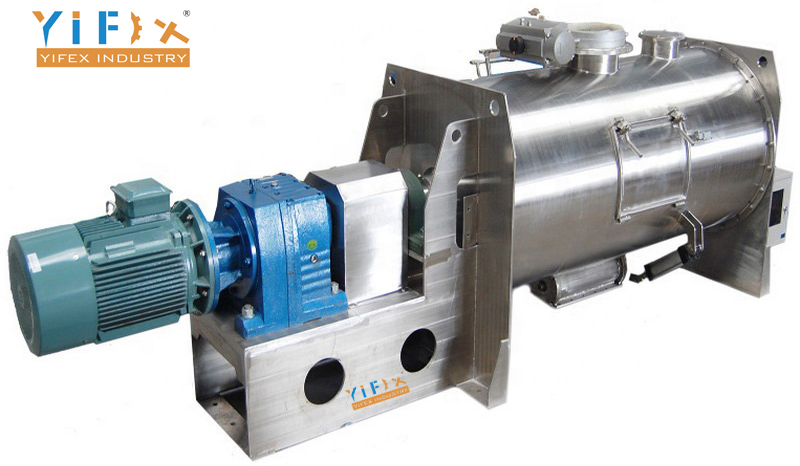

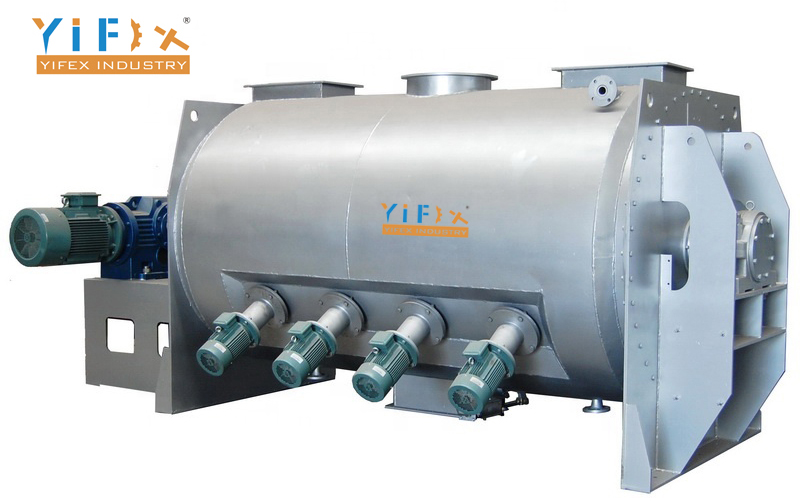

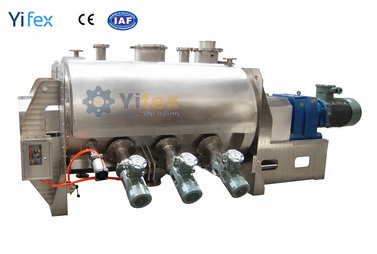

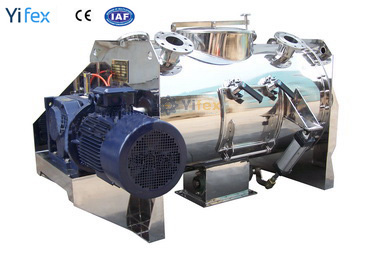

Plough Mixer
Model	LDH
Material	Stainless Steel 304 or 316，or Carbon Steel
Voltage	3 phase, 220V/ 380V/ 415V, 50HZ/60HZ(Customized is available)
Minimum Order Quantity	1 set
Warranty	12 months
Certification	CE,ISO,FDA,GMP
Delivery Time	10-30 days after receiving deposit
Payment Terms	T/T, L/C, Western Union, Paypal

If you choose this product, please tell us the Model and  your country. We will help you to calculate the machine price and shipping cost , Our Email is: info@yifex.com

For more details, please get in touch with us right now!

Introduction:

Plough Mixer is a high speed mixer with high homogeneity. During the mixing process, the raw materials are transferred around the drum in a radial, lateral and longitudinal movement by the high speed plough shears and choppers. Moreover, the mixing time is short, especially for free flowing powders or granules. Liquid additive and Heating or Cooling is also applicable.

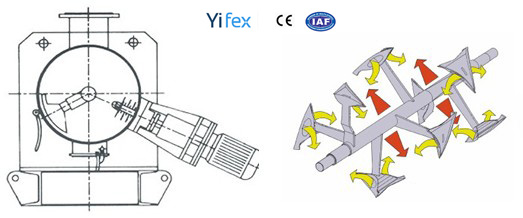

Working Principle:

In the first case the mixing shaft and the tools are horizontally installed, thus achieving, at corresponding movement, a product reaching from a loose product bed up to a mechanically generated fluidised bed. In the second case the mixing shaft is installed in vertical direction, whereby a socalled vortex is built at corresponding movement. The installation of fast-rotating chopper heads enables the mixing of products tending to lump formation. Due to the mixing tools, the material to be mixed is hereby specifically fed to the activity area of the chopper head. Besides the conventional ploughshare mixing tools a large variety of modified mixing tools is available, facilitating an optimum adaptation of the mixing tools to the individual material.

Standard Features:

Volume: 100-20000L
Stainless Steel or Carbon Steel
Plough agitator for center discharge
Designed for normal temperature and normal atmospheric pressure
Feed Nozzle
Dust Nozzle
Manually operated or Pneumatic operated flap valve
Packing Seal
Safety limit switch on inspection door

Optional Features:

Carbon Steel, Stainless Steel 304, Stainless Steel 316L
Different type of plough according to material characteristics
Internal pressure
Sanitary type construction
Flap valve, butterfly valve, slide gate valve, ball valve
Horsepower to suit higher density materials
Explosion-proof motors
Controls such as variable frequency drives, motor starters and operator stations are available
Spray nozzles for liquid introduction
Jacket for heating or cooling
Technical Data:

Model	Total Volume	Effective Volume	Motor Power(KW)
LDH-0.1	100L	40-60L	3
LDH-0.3	300L	120-180L	4
LDH-0.5	500L	200L-300L	7.5
LDH-1	1000L	400L-600L	11
LDH-1.5	1500L	600L-900L	15
LDH-2	2000L	800L-1200L	18.5
LDH-3	3000L	1200L-1800L	18.5
LDH-4	4000L	1600L-2400L	22
LDH-6	6000L	2400L-3600L	30
LDH-8	8000L	3200L-4800L	45
LDH-10	10000L	4000L-6000L	55
LDH-12	12000L	4800L-7200L	55
LDH-15	15000L	6000L-9000L	75
LDH-20	20000L	8000L-12000L	120

Certification:

CE,ISO,FDA,GMP

As different country ,the shipping cost is not same, so,after you chosen the products,
please tell us the model,quantity and your country .
We will help you calculate the machine price and shipping cost ,Our Email: info@yifex.com
