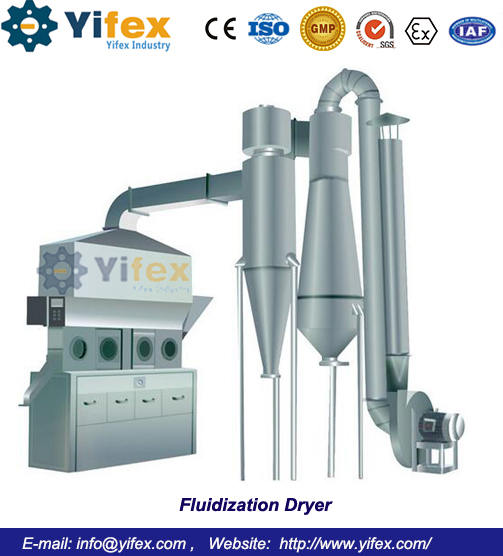

Fluidization Dryer
Model	XF
Material	Stainless Steel 304 or 316，or Carbon Steel
Voltage	3 phase, 220V/ 380V/ 415V, 50HZ/60HZ(Customized is available)
Minimum Order Quantity	1 set
Warranty	12 months
Certification	CE,ISO,FDA,GMP
Delivery Time	10-30 days after receiving deposit
Payment Terms	T/T, L/C, Western Union, Paypal

If you choose this product, please tell us the Model and  your country. We will help you to calculate the machine price and shipping cost , Our Email is: info@yifex.com

For more details, please get in touch with us right now!

Introduction:

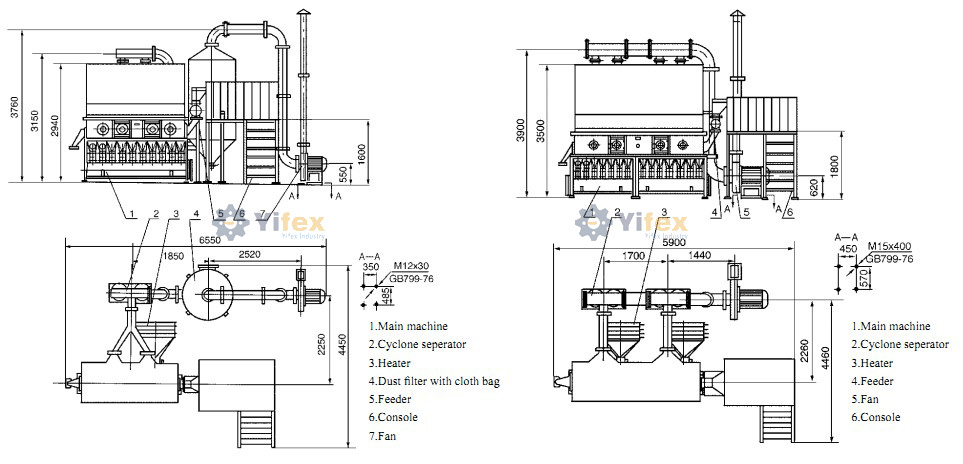

■ Fluidization drier is also called as fluidized-bed.It consists of air filter,heater,fluidized-bed main machine,feeder,cyclone separator,cloth bag duster,highpressure centrifuge fan and console. Because the property of raw materials is difference,it is necessary toequip dust remover in accordance with practical needs.It can select cyclone separator and cloth bag duster bothor one of them.In general, it needs to select cyclone separator only for raw material that is large and cloth bag duster for the material which is powder or small andlight granule,meanwhile there pneumatic feeding device and belt conveyor for selection.

■ Operation of this machine are continuous and intermitte type.

■ Steam,electricity or hot air furnace can be used (it can be supplied as request).

Working Principle:

■ xf fluidization drier use clean air after filtrating,through heat exchange, make air temperature rise to a certain value into main machine, then through distributor of valve plate into fluidization, material from feeder enter into the drier, because of wind pressure, raw material from boiling state in drier, the wide contact between hot air and raw material, increasing the process of hot exchang, In short time, make water vaporizing, raw material is discharged from the outlet. exhaust gas discharged from the top of the fluidization bed, and discharged from cyclone separator, dust filter with cloth bag after reclaiming material, The machine is working in negative pressure.

Scope of Application:

Used on medicines, chemical raw material, foodstuff, grain processing, feed and so on. For example, raw medicine, granular tablet, Chinese tranditional medicine, health foods, drinks,maize embryo, feed, plastic resin, citric acid and other powders. The suitable diameter of raw material is normally 0.1-0.6mm. The most applicable diameter of raw material will be 0.5-3mm.

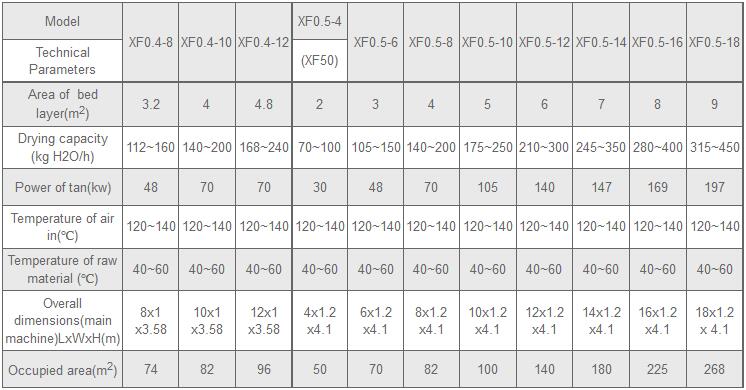

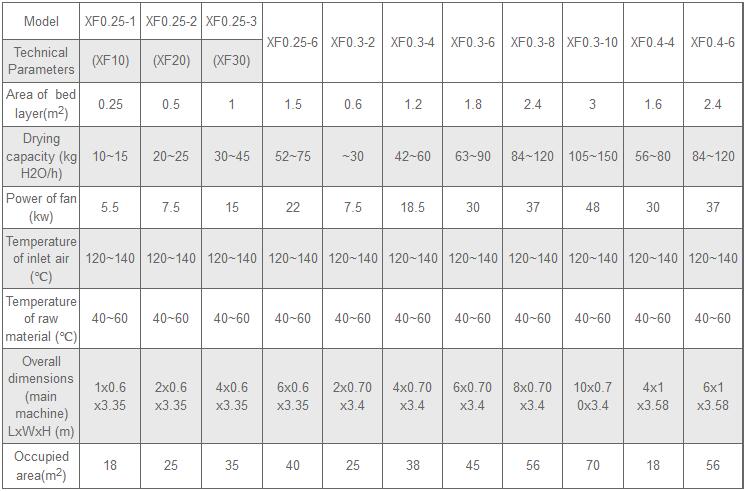

Technical Data:

As different country ,the shipping cost is not same, so,after you chosen the products,

please tell us the model,quantity and your country .
We will help you calculate the machine price and shipping cost ,Our Email: info@yifex.com

About US:

1.We are Chinese professional screening machines supplier with 20 years of production experience. products such as: crusher and mill, vibraing screen, filter, packing machine, feeders, conveyors and mixer machine etc.

2.All of our products can be SS304, SS316 and carbon steel, or nonmetal, pls let us know your request.

3.Customised designs and sizes available

4.Comply with Europe and America standard

5.OEM, ODM and OBM orders available.

Products details:

1) Various designs and colors are available

2) Good quality and competitives prices

3) Packing: 1set/ wooden case or according to customer designs

4) Production Time: 7-30days

Price terms:

We can offer EXW price, FOB price, CIF price  as client's requests.

Payment terms:

1.T/T 30% deposit before production and balance before delivery or against by B/L if sea shipment

2.L/C at sight if sea shipment.

Shipping way:

1.By air or sea through your pointed forwarder is OK for us. FOB Port is Shanghai.

2.If you don't have your forwarder,we can find the cheapest forwarder to ship the goods to your pointed port.

3.We can provide the customs documentations of the shipment as you required to you.

Message

After your confirmation, Our sales manager will contact you asap, Thank you for your support.
