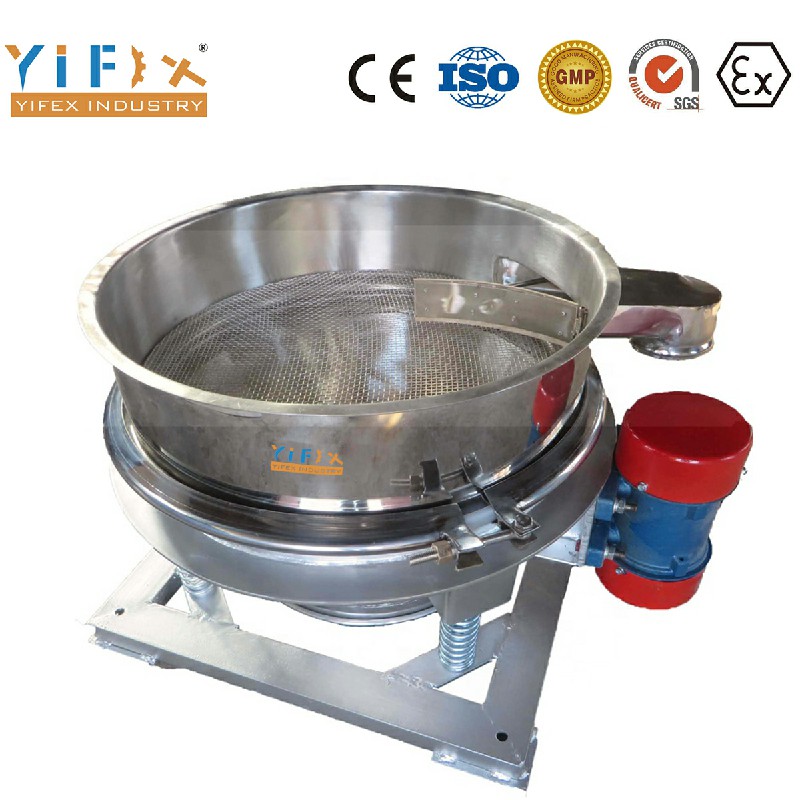

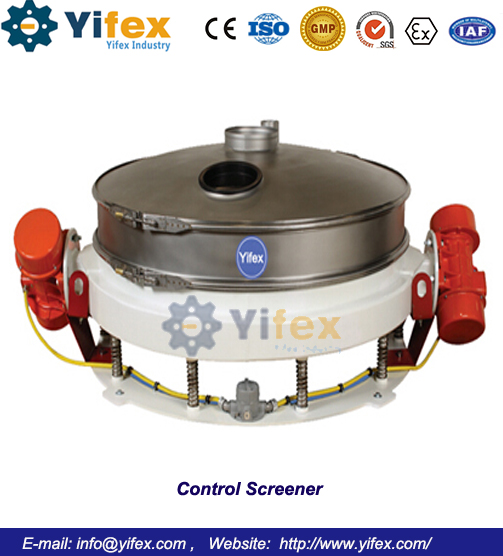

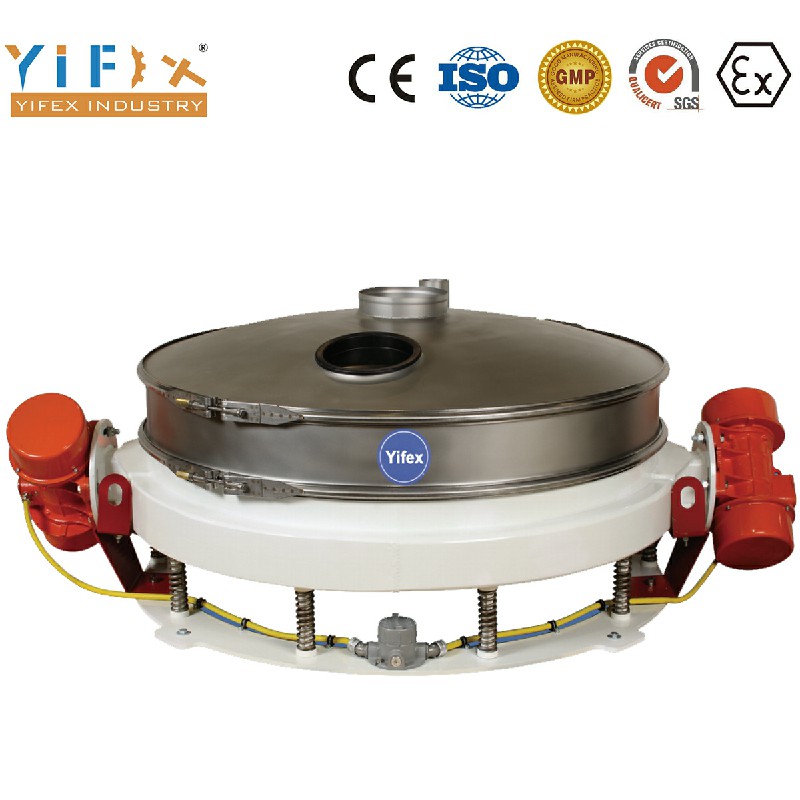

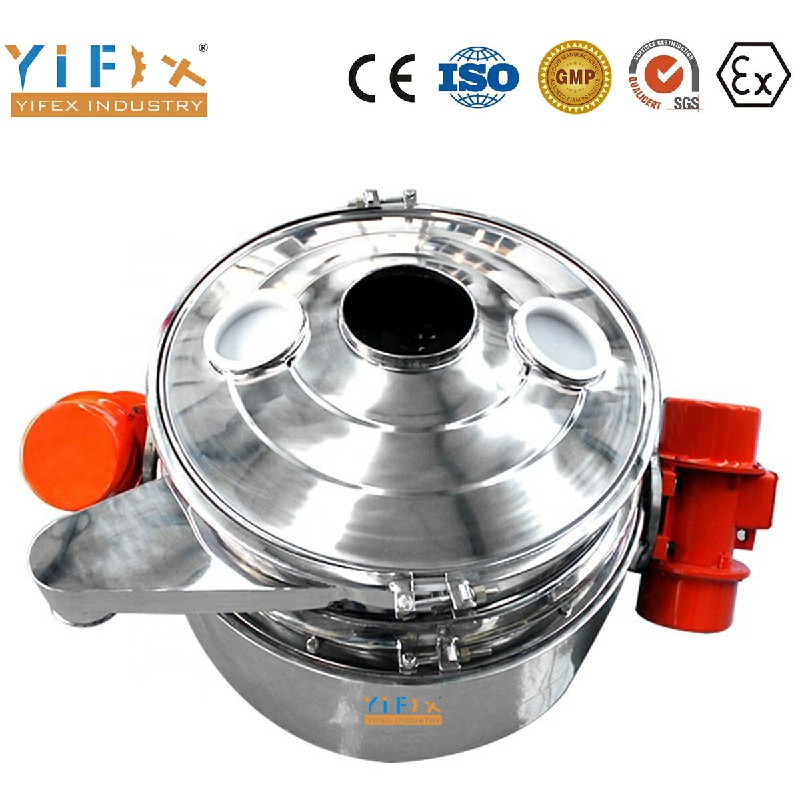

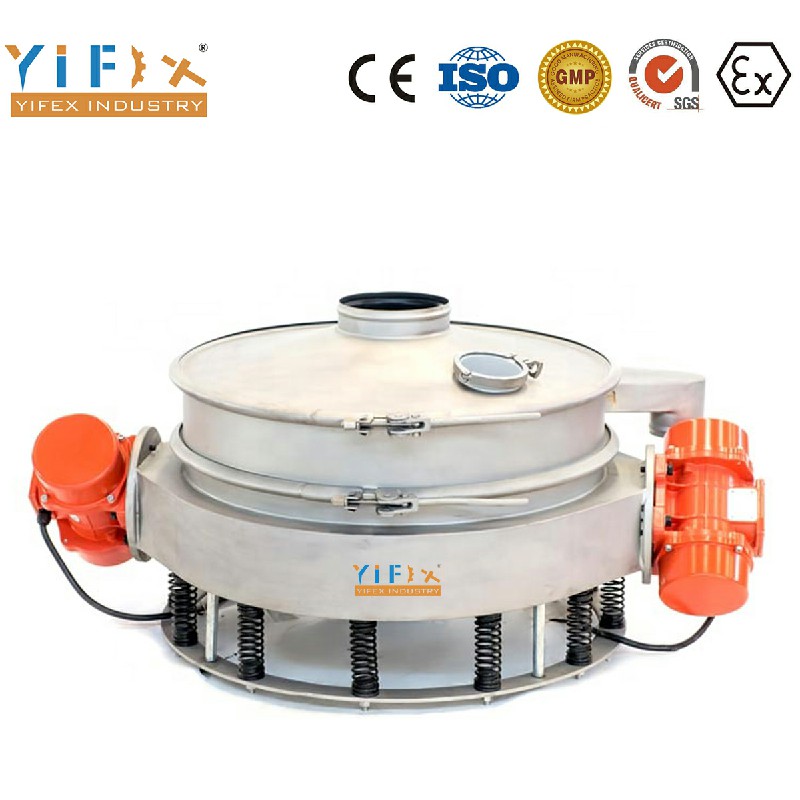

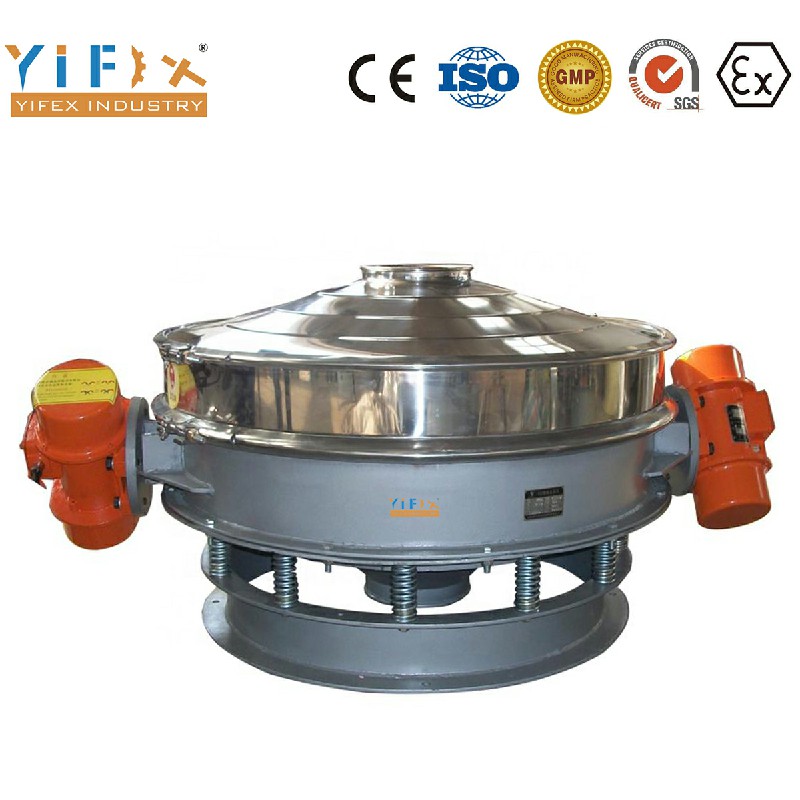

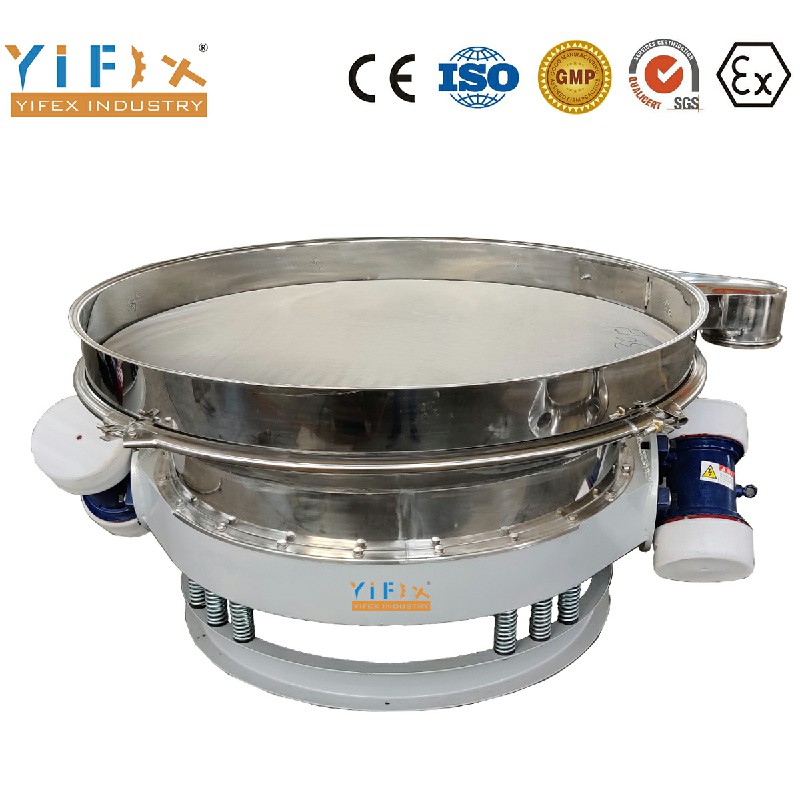

Low Profile Screener (Control Screener)
Model	YCS
Diameter	600mm, 800mm, 1000mm,1200mm
Layer	1~2 decks
Material	Stainless steel 304,316L,or Carbon Steel
Voltage	3 phase, 220V/ 380V/ 415V, 50HZ/60HZ(Customized is available)
Minimum Order Quantity	1 set
Warranty	12 months
Certification	CE,ISO,FDA,GMP
Delivery Time	10-30 days after receiving deposit
Payment Terms	T/T, L/C, Western Union, Paypal

If you choose this product, please tell us the Model, diameter, layers and  your country. We will help you to calculate the machine price and shipping cost , Our Email is: info@yifex.com

For more details, please get in touch with us right now!

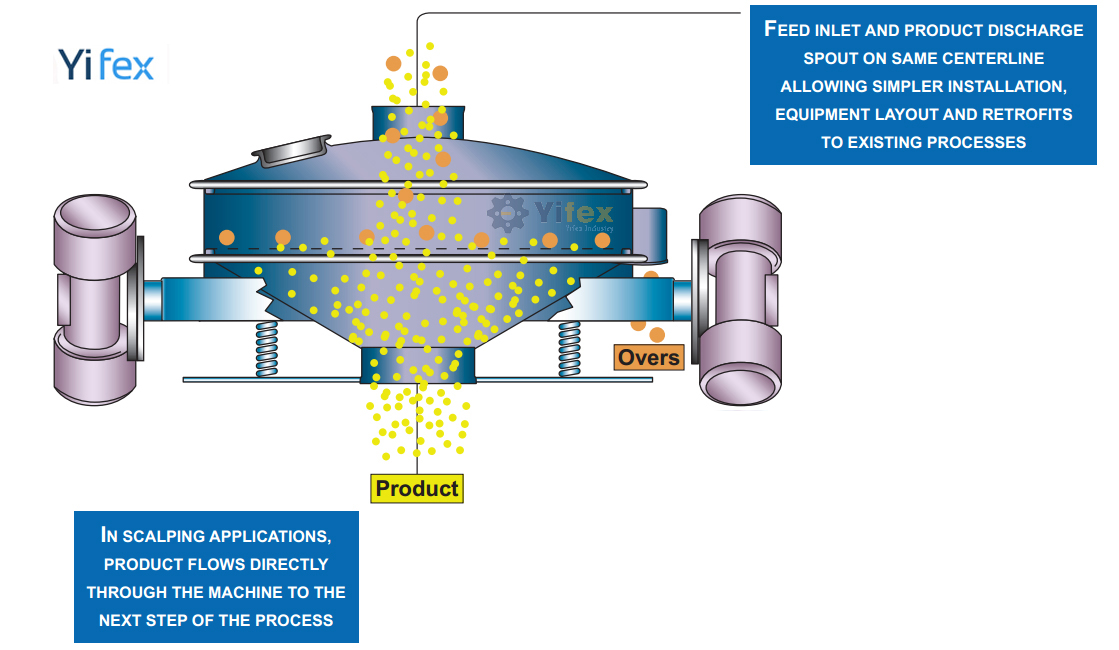

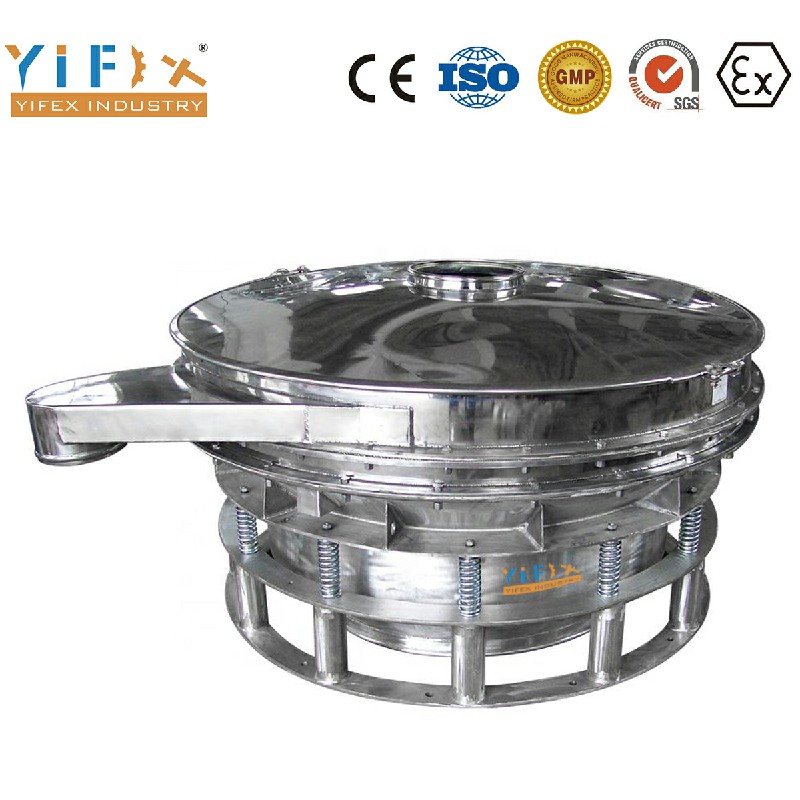

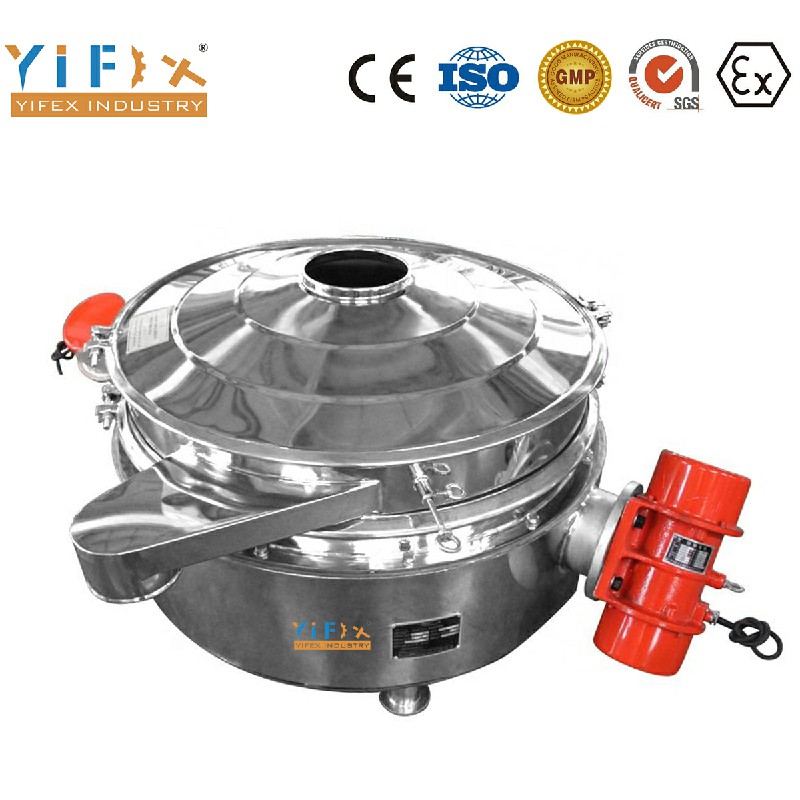

The Yifex® Low Profile Screener (Control Screener) offers high capacity wet or dry scalping in a compact, low headroom design. Dual motors mounted on opposite sides of the Screener Machine create the 3-D motion that allows maximum flow-thru of material. Because of its low headroom requirements (as little as 15 inches) and straight, flow-thru design, the Low Profile Screener fits easily into existing product lines without reworking the entire system. Inlets and outlets can be custom designed to mate with existing equipment and piping. The Low Profile Screener is ideally suited for prepackaging screening in many food and pharmaceutical applications, as well as for bulk bag unloading and screening of raw ingredients

Material:

The Yifex® Low Profile Screener machine could be made in all stainless steel 304 or 316, or only the contact part to be stainless steel.

Mesh Size:

Mesh Size could be from 20mm to 38μm(400mesh), and the material of the mesh wire could be stainless steel or Nonmetallic.

Certification:

CE,ISO,FDA,GMP

Options:

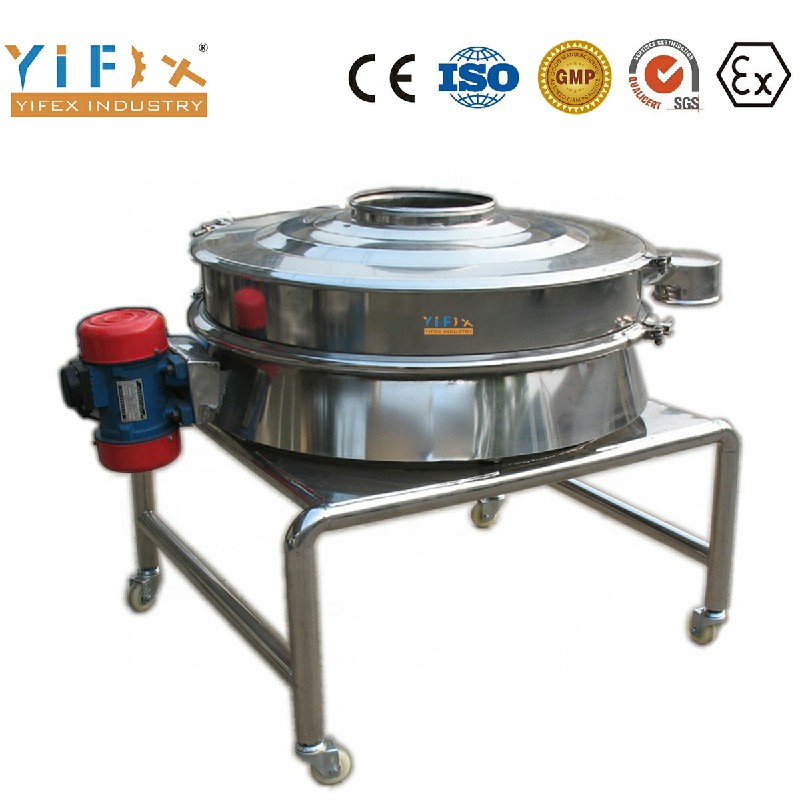

Mobile stand mounted on casters for bag unloading
Single mount motor design also available
Discharge magnet to aid in capture of metal contaminants can be used in conjunction with magnetic screens
Applications:
Bag emptying above mixers
Agglomerate and foreign matter removal
Off-line screening and product reclaim
Ingredient screening
Prepackaging screening



As different country ,the shipping cost is not same, so,after you chosen the products,

please tell us the model,quantity and your country .
We will help you calculate the machine price and shipping cost ,Our Email: info@yifex.com

About US:

1.We are Chinese professional screening machines supplier with 20 years of production experience. products such as:vibraing screen, feeders, conveyors, motors etc.

2.All of our products can be SS304, SS316 and carbon steel, or nonmetal, pls let us know your request.

3.Customised designs and sizes available

4.Comply with Europe and America standard

5.OEM, ODM and OBM orders available.

Products details:

1) Various designs and colors are available

2) Good quality and competitives prices

3) Packing: 1set/ wooden case or according to customer designs

4) Production Time: 10-30days

Price terms:

We can offer EXW price, FOB price, CIF price  as client's requests.

Payment terms:

1.T/T 30% deposit before production and balance before delivery or against by B/L if sea shipment

2.L/C at sight if sea shipment.

Shipping way:

1.By air or sea through your pointed forwarder is OK for us. FOB Port is Shanghai.

2.If you don't have your forwarder,we can find the cheapest forwarder to ship the goods to your pointed port.

3.We can provide the customs documentations of the shipment as you required to you.
