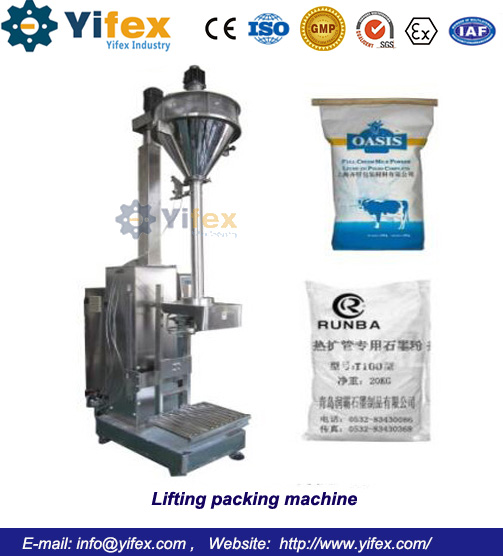

Lifting packing machine
Model	XJL-2C-1, XJL-2C-2
Material	Stainless Steel 304 or 316
Voltage	3 phase, 220V/ 380V/ 415V, 50HZ/60HZ(Customized is available)
Minimum Order Quantity	1 set
Warranty	12 months
Certification	CE,ISO,FDA,GMP
Delivery Time	10-30 days after receiving deposit
Payment Terms	T/T, L/C, Western Union, Paypal

If you choose this product, please tell us the Model and  your country. We will help you to calculate the machine price and shipping cost , Our Email is: info@yifex.com

For more details, please get in touch with us right now!

Introduction:

The packing machine is designed according to the national GMP standard, It's mainly designed and developed for the superfine powder and high precision packaging requirements . According to the signal is given by the weight sensor mounted on the container,completing the double speed filling measurement and lifting work, is suitable for the packaging of additives, toner, fire extinguisher powder, superfine powder, and the powder needs high precision packing etc. The machine body is made by stainless steel , motor, cylinder electrical accessories, pneumatic components, are all choosed with the well-known brands, or brands designated by the customer.

Product features:

• Equipped with weight sensors under the container tray for fast and slow filling weight according to pre-set, ensure the high accuracy packing.

• servo motor driven pallet lifting, lifting speed can be set arbitrarily, without substantially raise the dust pollution during filling.

• servo motor and servo drive control screw, stable performance and high precision.

• PLC control, touch screen display, easy to operate.

• All stainless steel construction; modular hopper is easy to clean.

• Filling head with adjustable height device, easy to achieve a variety of packaging specifications.

• fixed screw mounting structure, when the filling does not affect the nature of the material.

• Workflow: bagged or put artificial tank - container increases up- fast filling while the container drop - weight reach to the pre-measure value- slow filling-weight reach to the target value- Stop - Artificial removed the container.

• Air bag device and supporting cage device are optional, simply select the different device, you can meet the requirements of canned and bagged packing.
Technical Data:

Model	XJL-2C-1	XJL-2C-2
packaging weight	100-1000g	1-50KG
packaging accuracy	100-1000g ≤ ±2g ≥ 1000g ≤ ±0.1-0.2%	1—20Kg ≤±0.1-0.2% ≥20Kg ≤ ±0.05-0.1%
the packing speed	3-15times/min	2-10times/min
Power	2.6KW	3.1KW
weight	400KG	550kg
The feed box volume	60L	100L
the volume	1220x950x2380mm	1240x950x2750mm

Certification:

CE,ISO,FDA,GMP
